Ultra-Link Flagship: 80kmPremium

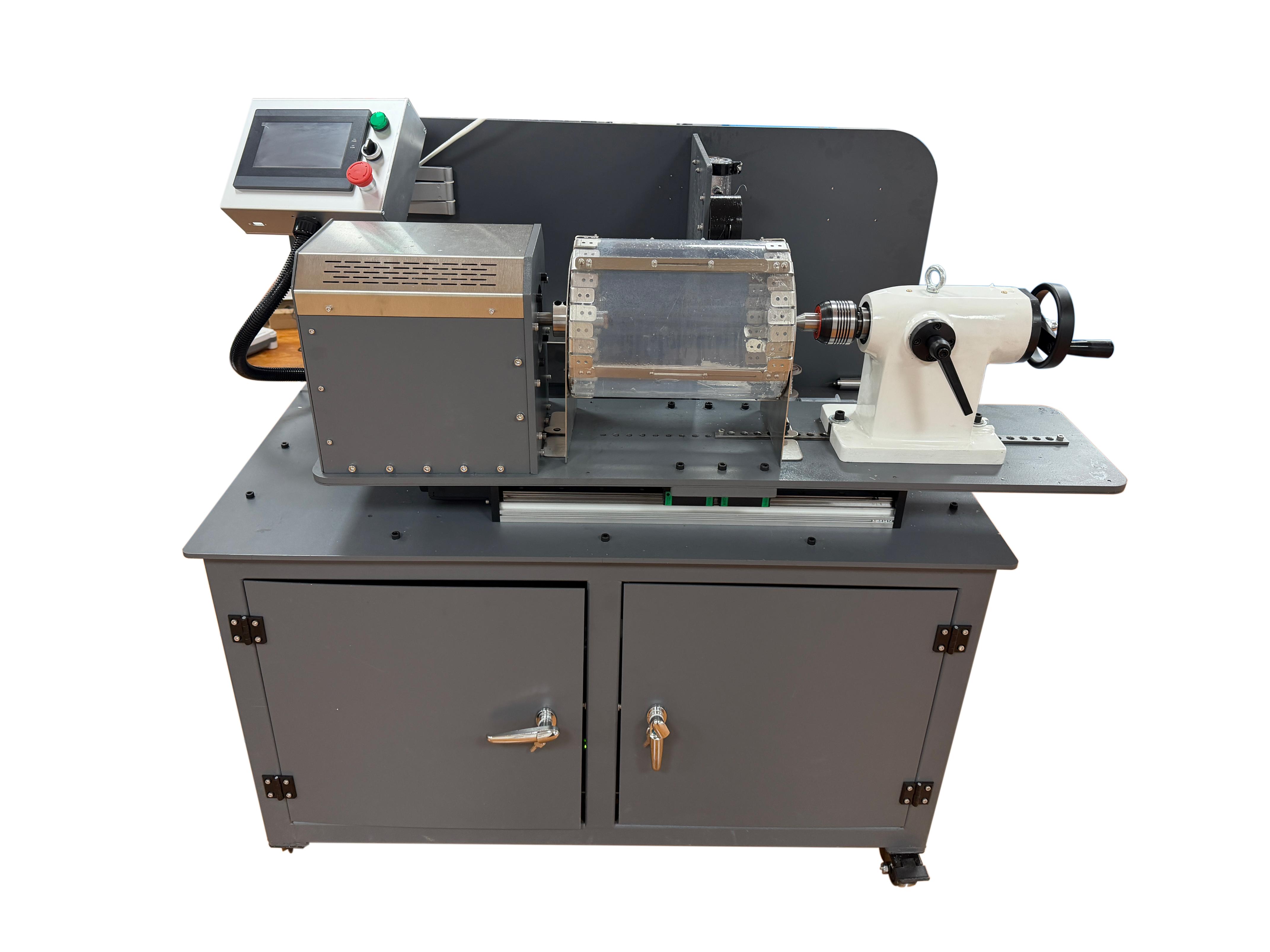

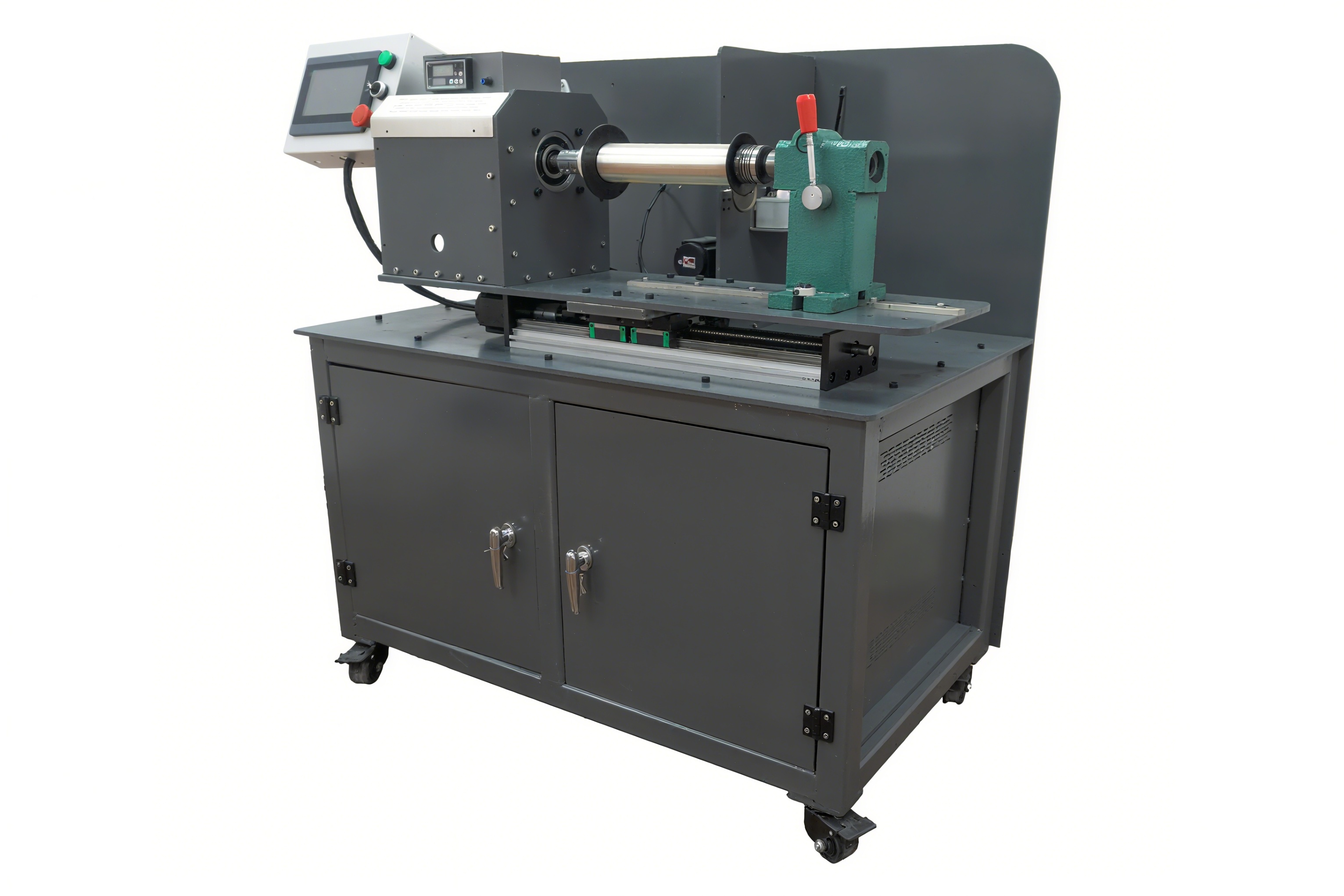

Ultra-High-Speed 80km Fiber Optic Winding & Rewinding Integrated Machine

The Prowinding 80km Series is the ultimate solution for strategic long-range UAV communication. This integrated system supports winding, unwinding, and rewinding at an extreme 500m/min speed. Featuring proprietary Dual-Path Synchronous Payout and Micro-Tension Adjustment, it ensures zero-loss signal integrity for high-density 80km fiber spools

Contact Us

Highlights

  1. 500m/min Extreme Speed: Industry-leading velocity for rapid fiber deployment and high-volume manufacturing.
  1. Dual Synchronous Wire Feeding Systems: Equipped with dual self-developed high-speed active wire feeding units, ensuring perfectly synchronized tension and speed during complex rewinding.
  1. Dual-Channel Precision Control: Multi-stage management minimizes micro-bends and stress, protecting the fiber’s glass core at high velocities.
  1. Micro-Tension Adjustment: Integrated tension regulation system allows for ultra-fine tuning of winding pull, adapting to the most delicate fiber cores.
  1. Smart Auto-Speed Sensing: Intelligent control system automatically monitors and adjusts speed in real-time for smooth, jerk-free operation.
  1. Proprietary Coating Unit: Self-developed gluing/coating device optimized for both Internal & External winding configurations.

Description

For mission-critical 80km drone links, tension stability is non-negotiable. Our flagship machine features self-developed synchronous wire feeding systems that work in tandem to eliminate fiber slack or over-tensioning.
The Micro-Tension Adjustment system gives operators surgical control over the winding process, allowing for real-time fine-tuning based on fiber type and spool diameter. Combined with Automatic Speed Sensing, the machine maintains a "Perfect Layering" effect even at 500m/min, ensuring that the fiber pays off smoothly during high-speed FPV maneuvers without signal attenuation.

Why Upgrade to the 80km Flagship?

  1. Extreme Efficiency: The 500m/min capability sets a new standard, doubling the output of conventional high-speed winders.
  1. Synchronized Stability: The dual wire feeding systems prevent the "tension lag" common in single-feeder machines, essential for 80km continuous runs.
  1. Surgical Precision: With micro-tension tuning, you can achieve the exact density required for specialized high-bandwidth fiber canisters.

Technical Specifications

Dual Modes
Internal Winding & External Winding
Device Size (LxWxH)
1200×1100x1200mm
Carton (LxWxH)
1330x1200x1330mm
Device net weight
454kg
Weight including carton
512kg
Operating temperature
-20- 50℃
Storage temperature
0-50℃
Wire products
Optic Fiber
Working voltage
AC200-240-50HZ
Rated voltage
AC220V-50HZ
Maximum output public ratio
4000W
Winding Speed
UP to 400m/min
Shaft diameter
350mm
Maximum spool width
350mm
Maximum load capacity of spool
20kg
Maximum diameter of fixture
350mm
Maximum pitch line distance
350mm
Standard pitch of stranded wire
Min 0.025mm
Lead of leadscrew
Max 2mm
Wire Feeding System
Dual Synchronous Wire Feeding Systems
Tension control mode
Integrated tension regulation system
Software
Independently developed FPV fiber optic; dedicated intelligent control system
Master the 80km FPV link with precision. Whatsapp us at +86-13510219832 or email us at sales02@futouav.com.
