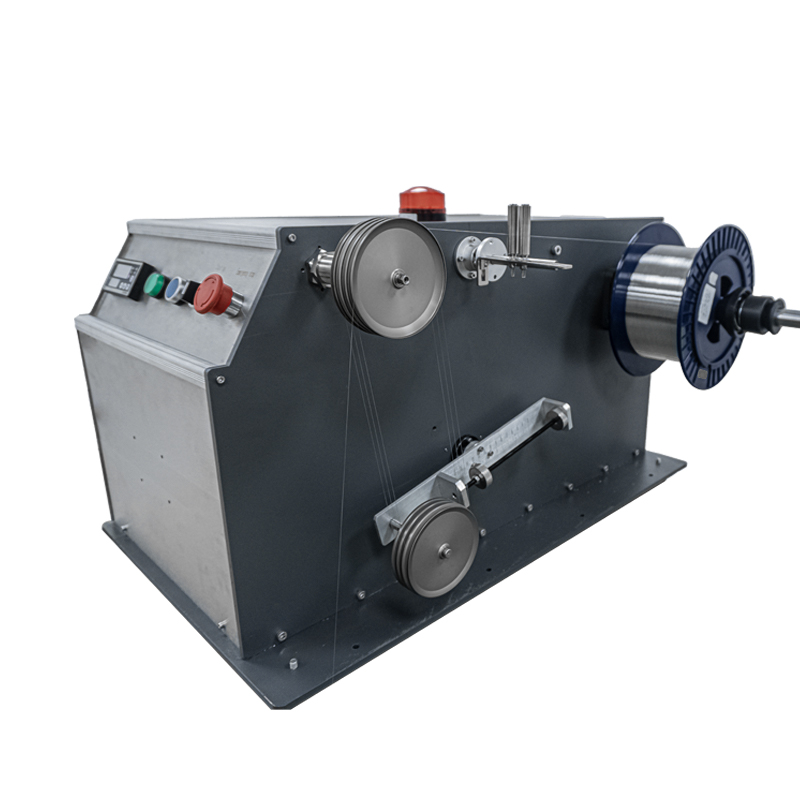

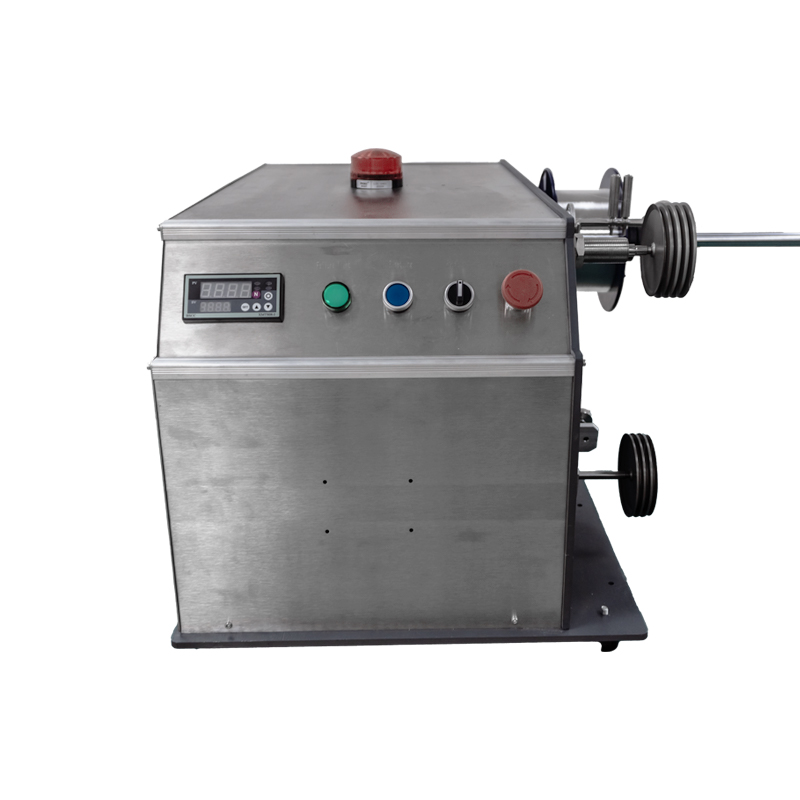

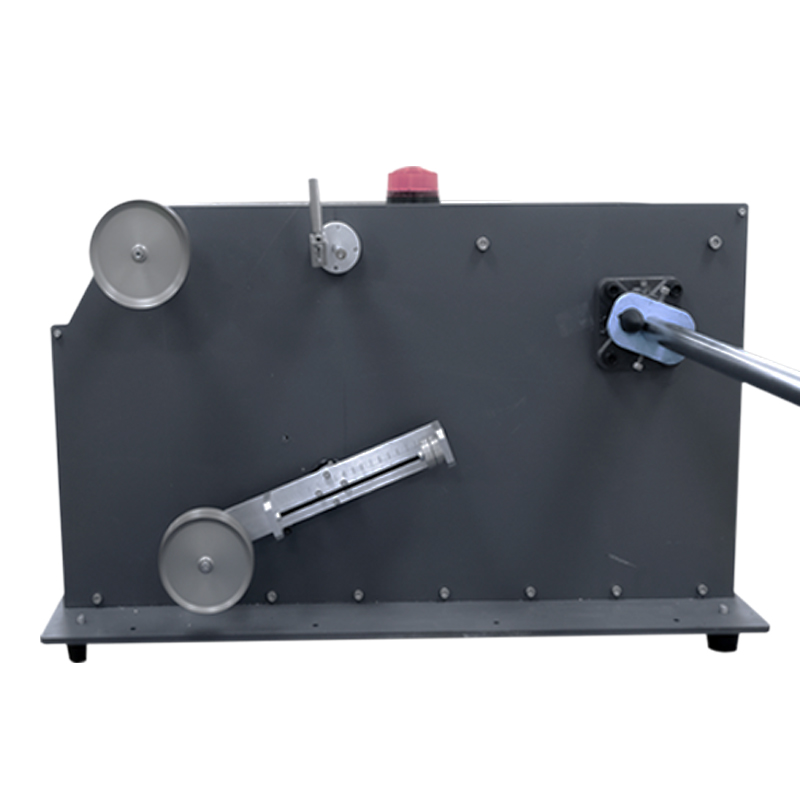

High-Speed Active Fiber Pay-off Machine

The Prowinding High-Speed Active Pay-off Machine is the essential companion for high-precision drone fiber winding. Engineered to deliver stable fiber feeding at speeds up to 500m/min, it eliminates tension fluctuations and protects the delicate fiber core. By synchronizing perfectly with your winding unit, it ensures uniform layering and significantly extends the performance and lifespan of FPV communication links.

Contact Us

Highlights

  1. 500m/min Ultra-Stability: Optimized for high-speed production lines, providing jitter-free fiber delivery even at maximum velocity.
  1. Precision Tension Tuning: Prevents fiber damage from over-stretching or signal loss from loose winding through real-time tension management.
  1. Zero-Damage Guidance: Equipped with specialized ceramic guide wheels to minimize friction and preserve the integrity of the fiber coating.
  1. Adaptive Synchronization: The self-adaptive speed system automatically matches the winding machine's pace for a seamless, "no-tug" operation.

Advanced Engineering:

  1. Intelligent Wire Feeding System: Active motor-driven feeding that responds instantly to winding demands.
  1. Digital High-Precision Tension Display: Real-time visual monitoring of tension levels for surgical accuracy.
  1. Specialized Fiber Guide Wheels: Full-ceramic contact points designed specifically for ultra-fine optical fibers.
  1. Advanced Early Warning System: Automatically detects and alerts for fiber tangles or end-of-spool scenarios.
  1. Self-Adaptive Speed Control: Dynamically adjusts feeding velocity to maintain constant fiber slack/tension.
  1. Integrated Tension Control Module: Ensures the most delicate fibers remain within their safe elastic limits.

Technical Specifications

Device Size (LxWxH)
800×950x500mm
Carton (LxWxH)
009x600x600mm
Device net weight
09kg
Weight including carton
201kg
Operating temperature
Less than 60℃
Storage temperature
0-50℃
Wire products
Optic Fiber
Rated voltage
220V-60HZ
Maximum output public ratio
1000W
Winding Speed
UP to 500m/min
Max Diameter of line disk
500mm
Maximum spool width
300mm
Maximum load capacity of spool
10kg
Maximum diameter of fiber
10mm
Mimimum diameter of fiber
0.025mm
Tension control mode
Integrated tension regulation system
Software
Independently developed FPV fiber optic; dedicated intelligent control system

Why Active Pay-off Matters

Passive de-reeling often causes "tension spikes" that lead to micro-bends in the fiber, resulting in signal attenuation for the drone. Our Active Pay-off system pushes the fiber instead of letting the winder pull it. This "Zero-Tension" feeding philosophy is what allows for 80km continuous winding without a single point of failure, ensuring your FPV video link remains crystal clear.

FAQ(Frequantly Asked Questions)

  1. Can it be used with other brands of winding machines? Yes. Our adaptive speed system and universal tension modules allow it to synchronize with most high-precision winding equipment on the market
