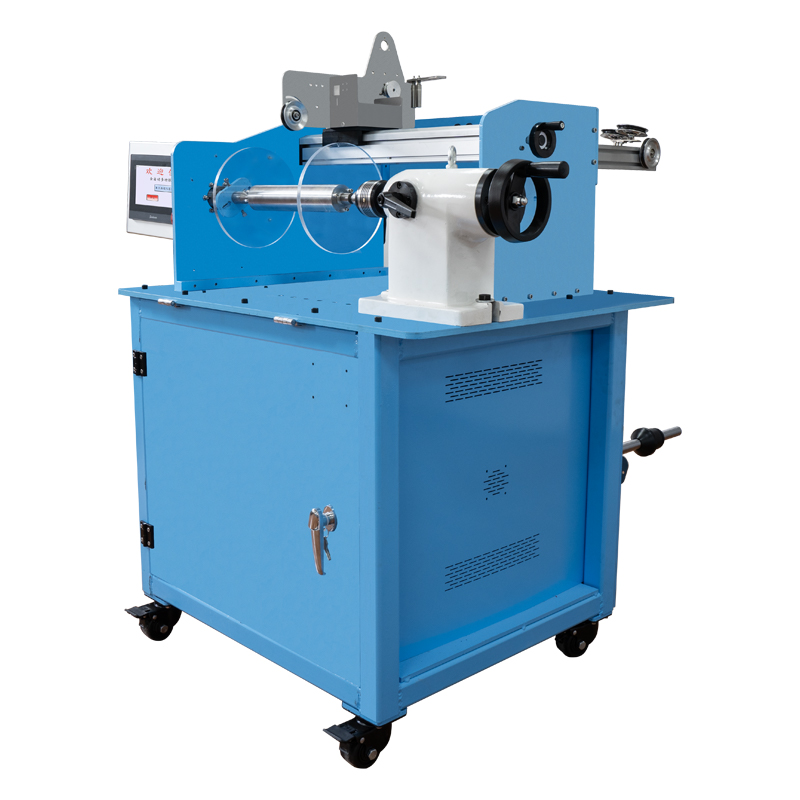

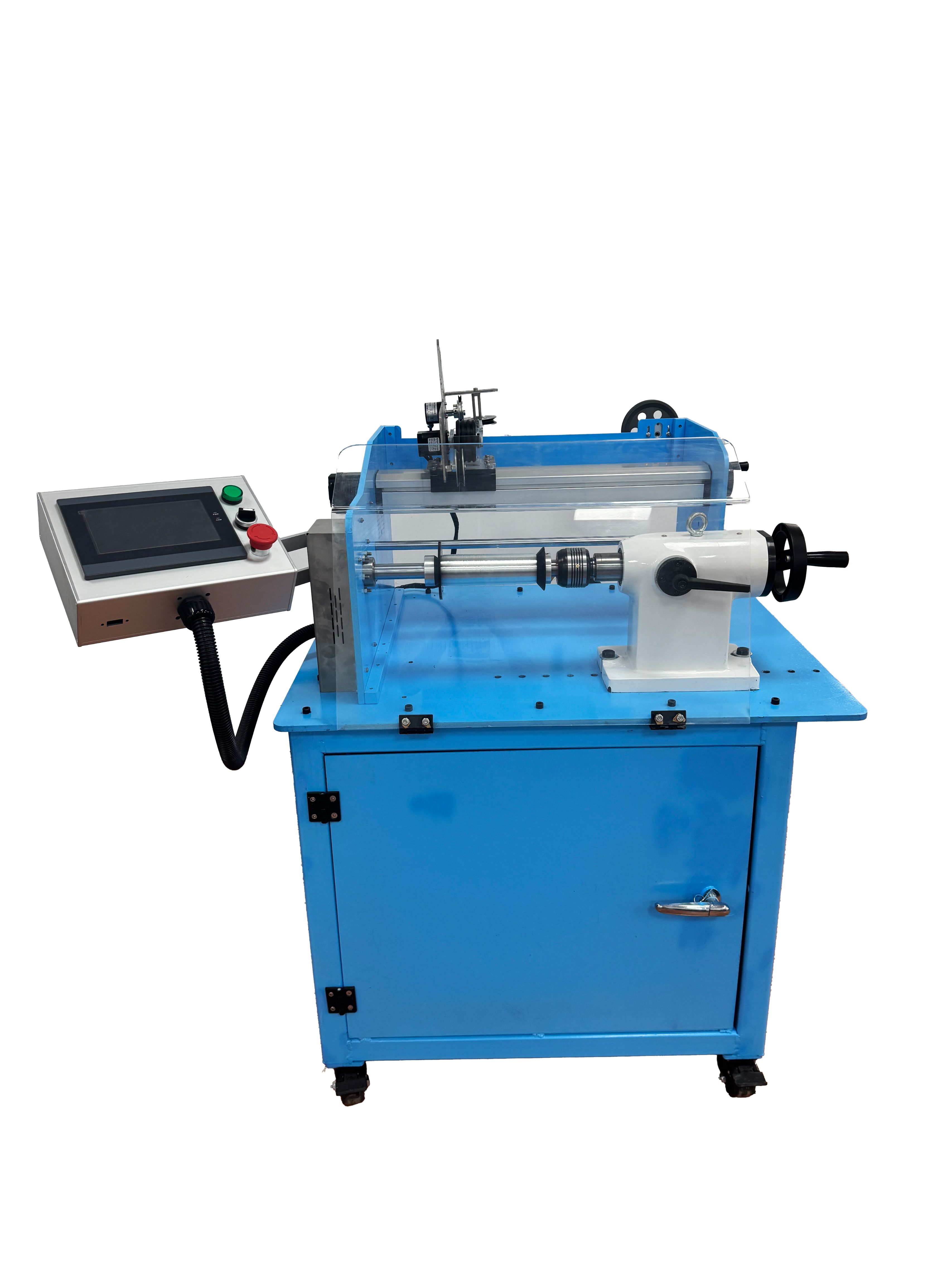

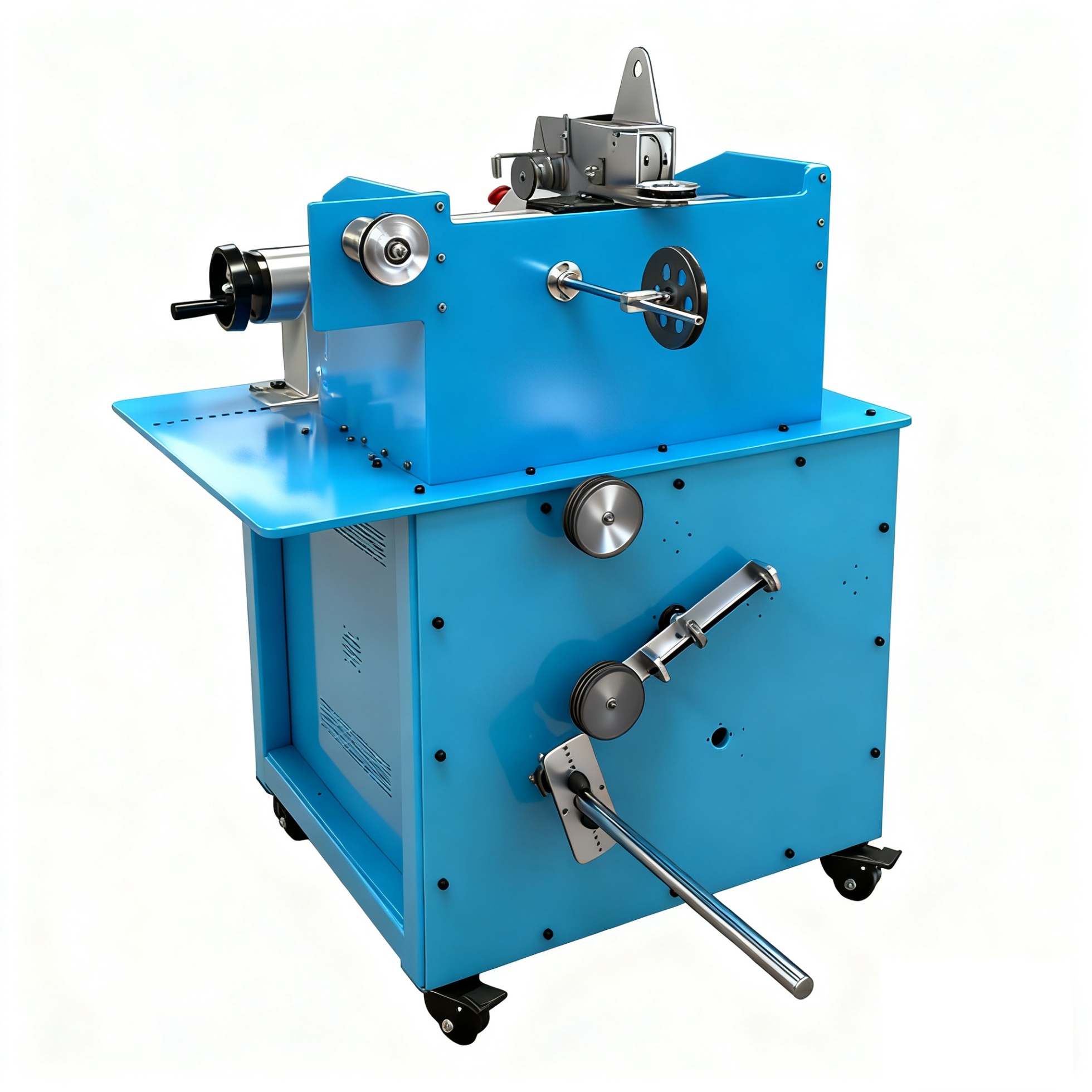

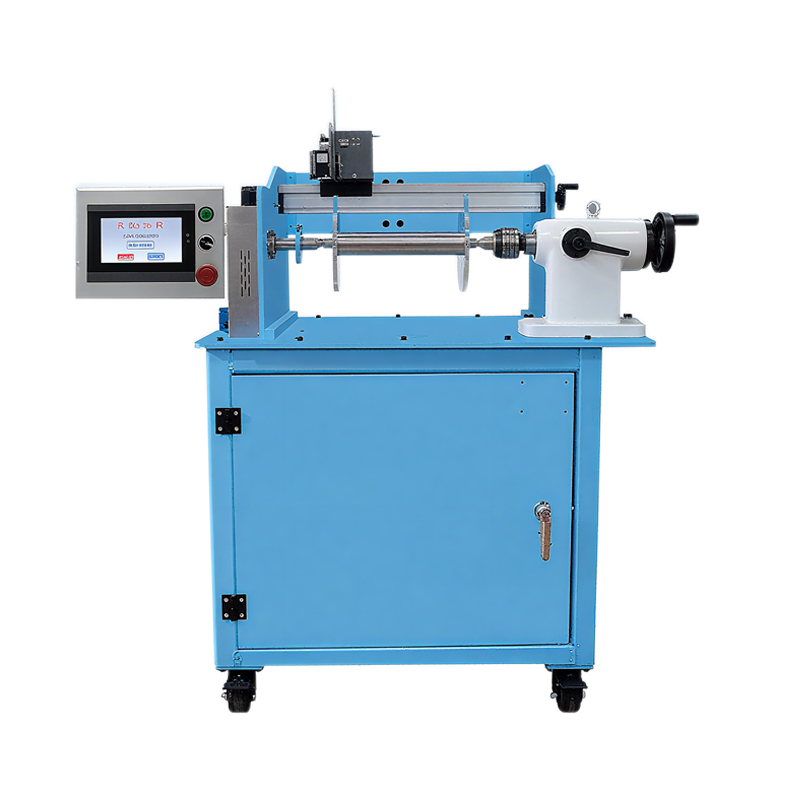

Advanced 50km Dual-Mode Fiber Optic Winding Machine
The Prowinding 50km Series is a versatile, enterprise-grade flagship designed for the most demanding drone communication links. Featuring Dual-Mode (Internal & External) capability, this machine supports continuous high-precision winding for fiber lengths up to 50km. With a tension control system and high-speed output, it is the ultimate tool for strategic UAV fiber spool production.
Description
In long-range FPV operations, the data link is the lifeline. Our 3D High-Speed machine is specifically built to eliminate the "jitter" and "snagging" often found in standard winding processes. By utilizing Intelligent Control Systems, the machine manages fiber inertia through smooth S-curve transitions, making it capable of handling continuous lengths of up to 50km without a single overlap. This level of precision ensures that during high-speed drone flight, the fiber pays off with zero resistance, providing a smooth video feed and uninterrupted communication signals.
Why the 50km Flagship?
- High Winding Speed Designed for FPV drone fiber optic winding, with a maximum speed of up to 400m/min.
- Built-in Active Pay-off Function Equipped with an independent active pay-off system and tension control, supporting both internal and external winding.
- Stable Signal & Low Loss Low fiber attenuation, reliable drone communication, smooth video transmission, and consistent pay-off.
- Premium Cable Protection Full ceramic contact design effectively protects the fiber optic cable.
- Intelligent Precise Control
Built-in intelligent system with S-curve acceleration and deceleration for accurate speed control.
- Large Winding Capacity Supports a maximum winding length of 50km, ensuring stable high-speed operation.
Technical Specifications
Device Size (LxWxH) | 970×1100x1200mm |
Carton (LxWxH) | 1190x1230x1380mm |
Device net weight | 317kg |
Weight including carton | 357.8kg |
Operating temperature | less than 60℃ |
Storage temperature | 0-50℃ |
Wire products | Optic Fiber |
Working voltage | 220V-60HZ |
Rated voltage | 100-240V |
Maximum output public ratio | 1000W |
Winding Speed | UP to 400m/min |
Shaft diameter | 300mm |
Maximum spool width | 400mm |
Maximum load capacity of spool | 20kg |
Maximum diameter of fixture | 150mm |
Maximum pitch line distance | 390mm |
Standard pitch of stranded wire | Min 0.025mm |
Maximum pitch of the conductor | Max 2mm |
Tension control mode | Support |
Software | Independently developed FPV fiber optic; dedicated intelligent control system |
Frequently Asked Questions (FAQ)
- How difficult is it to switch between Internal and External winding? The transition is streamlined through our software interface and a quick-change spindle system. While the machine is equipped with a coating/guiding unit, do NOT add glue or adhesive to the applicator when external winding needed. Our provided training videos show how to switch modes.
- Can this machine handle 50km without stopping? Absolutely. The heavy-duty motor are designed for continuous 24/7 operation to handle the longest fiber missions without overheating or loss of precision.
